YO
PELADN YO1 395

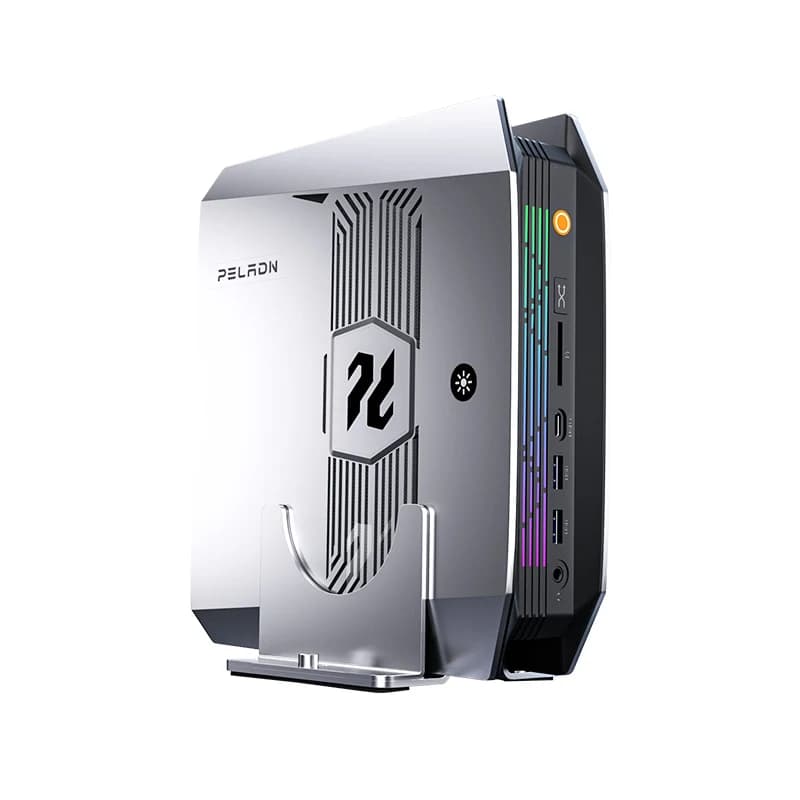

PELADN YO1 395 Mini PC powered by AMD AI Max+ 395. Specifications are based on the official PELADN product page.
- Model
- YO1 395
- Platform
- AMD AMD AI Max+ 395
About the product
PELADN YO1 395 is a PELADN mini pc. Technical specifications are structured from the manufacturer's official Product Parameter table. Confirm the exact configuration and availability when submitting an inquiry.
Specifications
General
- Brand
- PELADN
- Product Model
- YO1 395
Processor
- CPU
- AMD AI Max+ 395, 16 Cores And 32 Threads, TDP:55W/85W/120W Three Models Available; Base Frequency 3GHz, Maximum Turbo Frequency 5.1GHz
- CPU Cache
- L2 Cache 16MB; L3 Cache 64MB
AI
- AI Engine Performance
- Overall TOPS: Up To 126 TOPS NPU TOPS: Up To 50 TOPS
Graphics
- Graphics
- Radeon 8060S Graphics, 40 Cores, Graphics Card Maximum Core Frequency 2900MHz
Memory
- Memory
- Equipped With LPDDR5X-8000MHz 128GB Memory(Memory Replacement And Additional Installation Are Not Supported)
Storage
- Storage
- Equipped With 2TB 2280 Specification PCIe 4.0×4 M.2 SSD, 1*PCIe 4.0×4 M.2 Expansion Slot Reserved
Network
- Network
- 1*2.5G RJ45 Wired Network Port, Equipped With AX210 Wi-Fi 6E Wireless Network Card, Support Bluetooth 5.2
Interfaces
- USB
- 2*USB4 40Gbps Type-C Ports(1 Each On The Front And back, Supporting DP1.4, Up To 8K 60Hz Video Output) 3*USB 3.2 Gen2 Type-A Ports, 2*USB2.0 Ports
- Video Output Interface
- 1*HD 2.1 Support 8K 60Hz, 1*DP 1.4 Support 8K 60Hz
- Audio
- 2*3.5mm Audio Jack Headphone And Microphone Two-In-One Interface(One on the front and the other on the back panels)
- SD Card Slot
- 1*SD Card Slot(SD4.0 Protocol, Capacity Level SDXC, Speed Limit UHS-II)
- Power Interface
- 1*DC-in Power Adapter Port
Power
- Power Switch Button
- Support(Front Panel)
- Power Adapter
- Input: 100--240V AC, 50/60Hz, Output: 20V 12A
Physical
- Material/Color
- Aluminum, Silver
- RGB
- Not Supported
- Weight And Size(Manual Measurement, Data For Reference Only)
- Net Weight: 1380g Product Size: 221*200*56mm
System and operation
- OS
- Pre-installed Win 11 Pro(Support Other OS Just Like Win 10/LINUX)
- Work Environment
- Temp: -20℃ -- 60℃, RH: 10%--90%
- Warehouse Environment
- Temp: -20℃ -- 60℃, 10%--90%
- Other Features
- Support Power-On Start
Package and logistics
- Packing List
- 1*HD Cable, 1*Power Adapter(20V 12A), 1*User Manual
- Packing Information
- Qty/Carton:6(Cartoon Size: 55*38*30.8cm)
Other
- Performance Mode Switch Button
- Support(Front Panel), Can Switch 55W/85W/120W Three Different TDP Modes
