WO
PELADN WO7 7735U

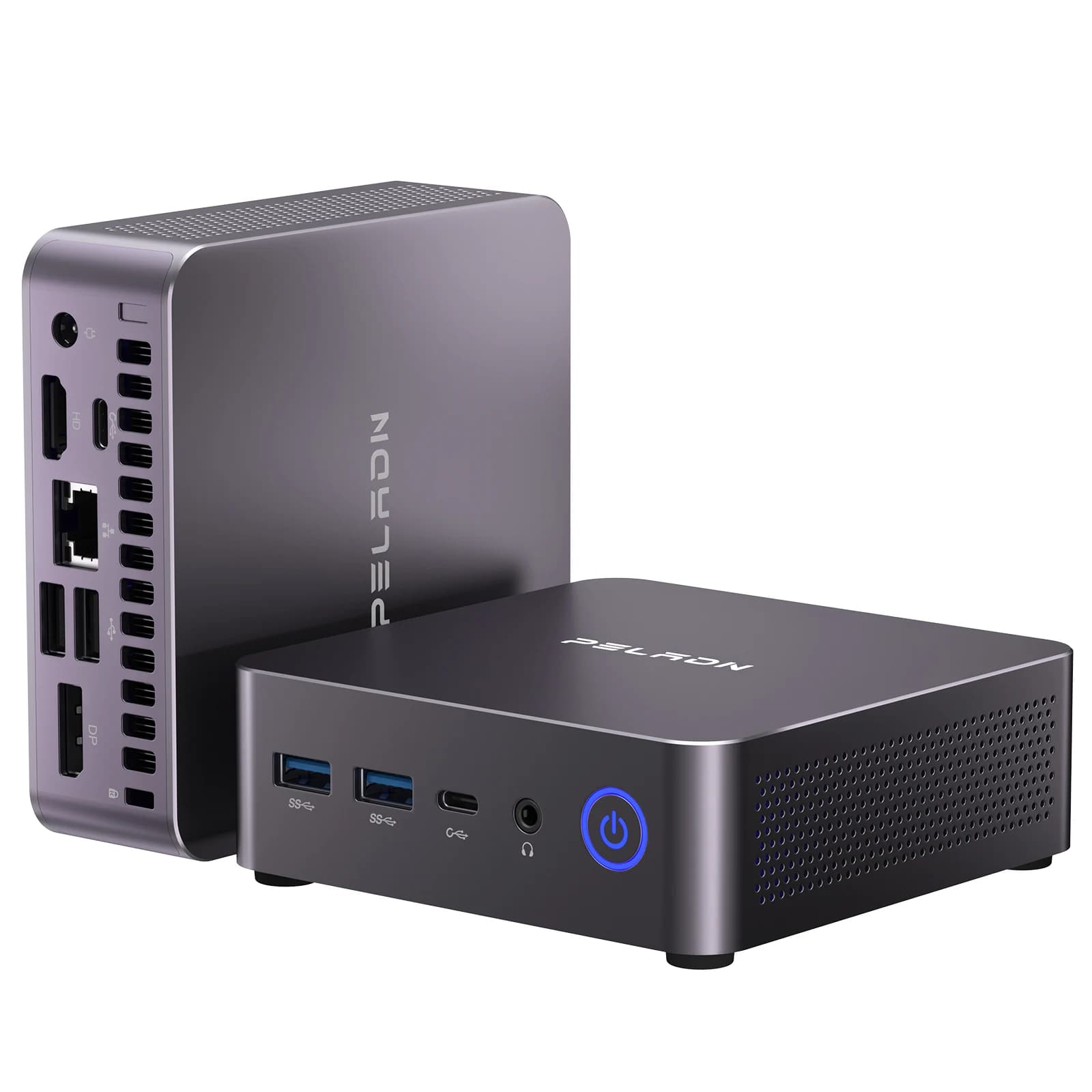

PELADN WO7 7735U Mini PC powered by AMD 7735U / 8 Cores / 16 Threads TDP: 30W. Specifications are based on the official PELADN product page.
- Model
- WO7 7735U
- Platform
- AMD AMD 7735U / 8 Cores / 16 Threads TDP: 30W
About the product
PELADN WO7 7735U is a PELADN mini pc. Technical specifications are structured from the manufacturer's official Product Parameter table. Confirm the exact configuration and availability when submitting an inquiry.
Specifications
General
- Brand
- PELADN
- Product Model
- WO7 7735U
Processor
- CPU
- AMD 7735U / 8 Cores / 16 Threads TDP: 30W
Graphics
- Graphics Card Model
- AMD Radeon 680M Graphics Card Frequency: 2200 MHz
Storage
- SSD PCIE3.0
- SSD PCIE3.0/PCIE 4.0 M.2 NVMe SSD 2280 Maximum Support 4TB
- Storage Environment
- -20℃-60℃, 10%-90% Humidity
Network
- WIFI/BT
- 9852BE/M.2 E_key WiFi 6.0/BT 5.2
- 1000M LAN(RJ45)
- 1
Interfaces
- Interface
- USB 3.2 Gen2(Type A)
- USB 2.0
- 2
- Audio Jack(HP&MIC)
- 1
- DP 1.4 4K 30Hz
- 1
- Type-C USB 3.2 GEN2, 10Gb Data Only/Data+DP
- 2
Power
- Power Button
- 1
- Power Adapter
- AC 100~240V, 19V/3.42A
Physical
- Dimension
- 113*113*36mm
System and operation
- Operating System
- Windows 11 Pro / LINUX
- Working Environment
- -10℃-45℃, 30%-90% Humidity
Other
- Cache
- L2 Caching: 4MB / L3 Cache: 16 MB
- SO DIMM DDR5
- DDR5 4800MT/s Or 5600MT/s Maximum Support 64GB
- HD 2.0.4K 60Hz
- 1
- DC Jack 5.5*2.5
- 1
- Accessories
- Wall-mounted Bracket, Screw Packs
- Additional Features
- Call Start
- N.W
- Device Weight:550g
Drivers & downloads
No files have been published for this product yet. Downloads
