WO

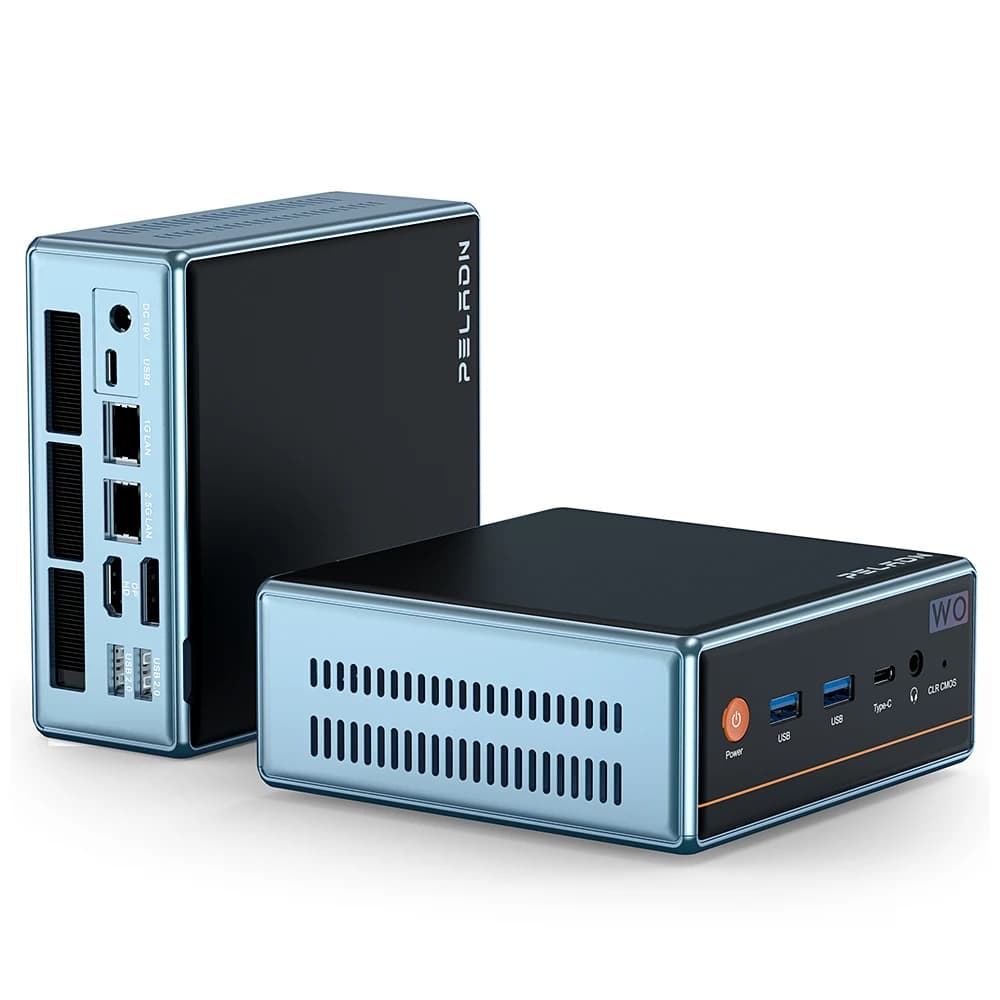

PELADN WO4 6900HX
PELADN WO4 6900HX Mini PC powered by AMD 6900HX / Cores:8 / Threads: 16 TDP: 45W. Specifications are based on the official PELADN product page.
- Model
- WO4 6900HX
- Platform
- AMD AMD 6900HX / Cores:8 / Threads: 16 TDP: 45W
About the product
PELADN WO4 6900HX is a PELADN mini pc. Technical specifications are structured from the manufacturer's official Product Parameter table. Confirm the exact configuration and availability when submitting an inquiry.
Specifications
General
- Brand
- PELADN
- Product Model
- WO4 6900HX
Processor
- CPU
- AMD 6900HX / Cores:8 / Threads: 16 TDP: 45W
Graphics
- Graphics Card Model
- AMD Radeon Graphics 680M / Graphics Card Frequency: 2400 MHz
Storage
- SSD PCIE 4.0
- M.2 NVME SSE 2280 Maximum Support 4TB
- SSD PCIE 3.0
- M.2 NVME SSD 2280 Maximum Support 4TB
- Storage Environment
- -20℃~60℃, 10%~90% Humidity
Network
- 2.5G Local Area Network（RJ45）
- 1
- 1G Local Area Network(RJ45)
- 1
Interfaces
- Interface
- USB 3.2
- USB 2.0
- 2
- Audio Jack(HP&MIC)
- 1
- DP 1.4 4K 60Hz
- 1
- USB 4.0 Maximum Support 40GB Data Transmission
- 1
Power
- Power Button
- 1
- Power Adapter
- AC 10~240V
Physical
- Dimension
- 128*128*52mm
- Weight
- Only Device: 0.55KG
System and operation
- Operating System
- Window 11 PRO
- Working Environment
- -10℃~45℃, 30%~90% Humidity
Other
- Cache
- 16MB
- SO DIMM DDR5
- 16G 4800MHz / Maximum Support 64GB
- Wireless LAN / BT
- 9852BE 、 M.2E_key WiFi 6.0 / BT 5.2
- HD 2.0 4K 60Hz
- 1
- Type-C Support Video / Data Transfer
- 1
- DC Jack 5.5*2.5
- 1
- Fittings
- Wall Mount Bracket, Screw Packs
- Additional Features
- Power On Automaticially
Drivers & downloads
No files have been published for this product yet. Downloads
