WO
PELADN WO4 5600H

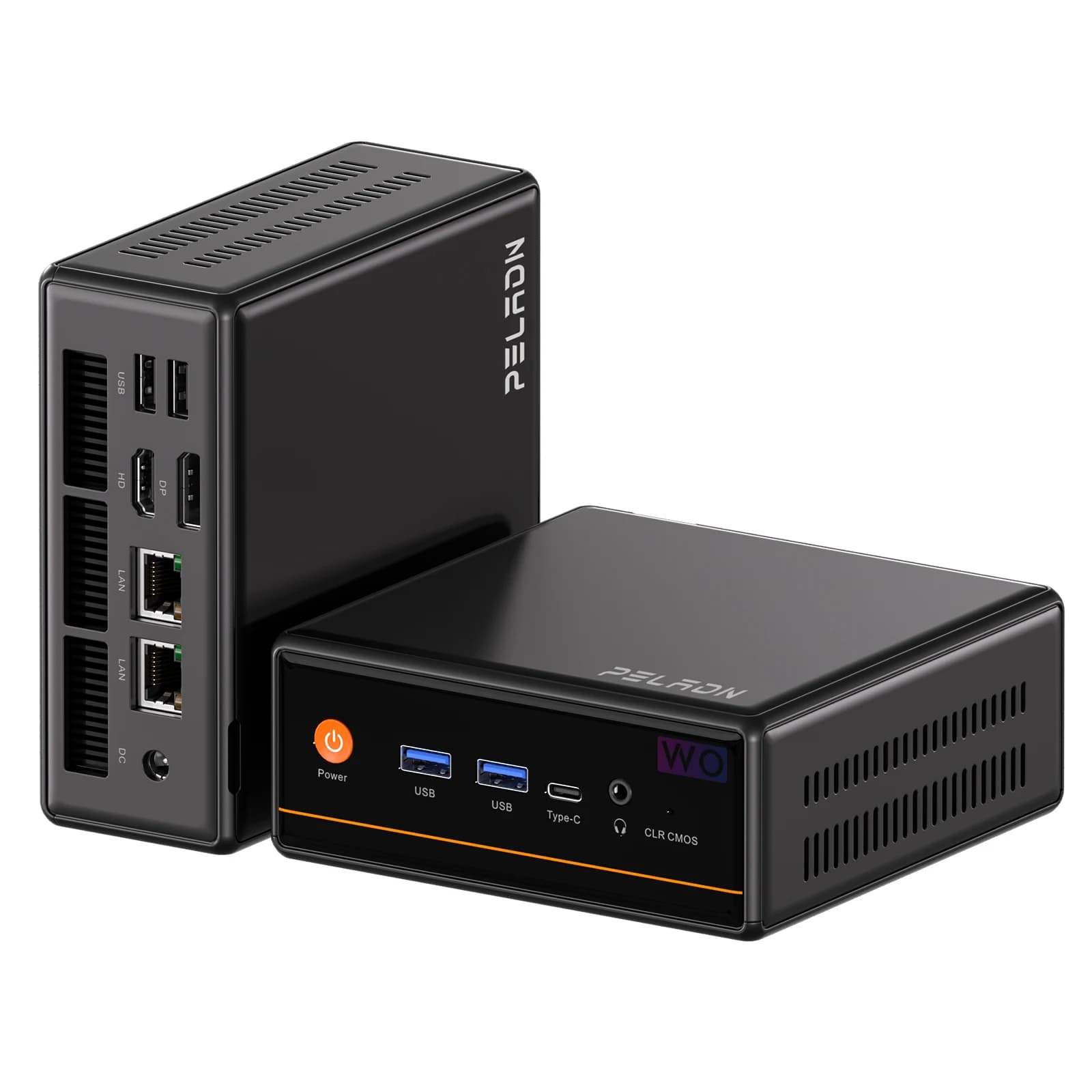

PELADN WO4 5600H Mini PC powered by AMD 5600H / Cores:6 / Threads: 12 TDP: 45W. Specifications are based on the official PELADN product page.
- Model
- WO4 5600H
- Platform
- AMD AMD 5600H / Cores:6 / Threads: 12 TDP: 45W
About the product
PELADN WO4 5600H is a PELADN mini pc. Technical specifications are structured from the manufacturer's official Product Parameter table. Confirm the exact configuration and availability when submitting an inquiry.
Specifications
General
- Brand
- PELADN
- Product Model
- WO4 5600H
Processor
- CPU
- AMD 5600H / Cores:6 / Threads: 12 TDP: 45W
Graphics
- Graphics Card Model
- AMD Radeon Graphics Card Frequency: 1800 MHz
Storage
- SSD PCIE3.0
- M.2 NVME SSD 2280 512G Maximum Support 4TB
- Storage HDD
- SATA Interface 2.5, 500GB / 1T 7200rpm
- Storage Environment
- -20℃-60℃, 10%-90% Humidity
Network
- Wireless LAN / Bluetooth
- 8852BE / M.2 E_key WiFi 6.0 / BT 5.2
- 2.5G Local Area Network(RJ45)
- 1
- 1G Local Area Network(RJ45)
- 1
Interfaces
- Interface
- USB 3.2
- USB 3.0
- 2
- Audio Jack(HP&MIC)
- 1
- DP 1.4 4K 60Hz
- 1
Power
- Power LED
- 1
- Power Button
- 1
- Power Adapter
- AC 100~240V, 19V/4.74A
Physical
- Dimension
- 128*128*52mm
System and operation
- Operating System
- Windows 11 Pro / LINUX
- Working Environment
- -10℃-45℃, 30%-90% Humidity
Other
- Base Clock
- 3.3GHz
- Max Boost Clock
- 4.2GHz
- Cache
- L2 Caching: 3MB / L3 Caching: 16MB
- SO DIMM DDR4
- 16G 3200MHz / Maximum Support 64GB
- HD 2.0 4K 60Hz
- 1
- Type-C Support Video / Data Transfer
- 1
- DC Jack 5.5*2.5
- 1
- Fittings
- Wall Mount Bracket, Crew Packs
- N.W
- 05KG
- G.W
- 1.15KG
- Additional Feature
- Power On Automatically
Drivers & downloads
No files have been published for this product yet. Downloads
