PELADN HO5 HX370

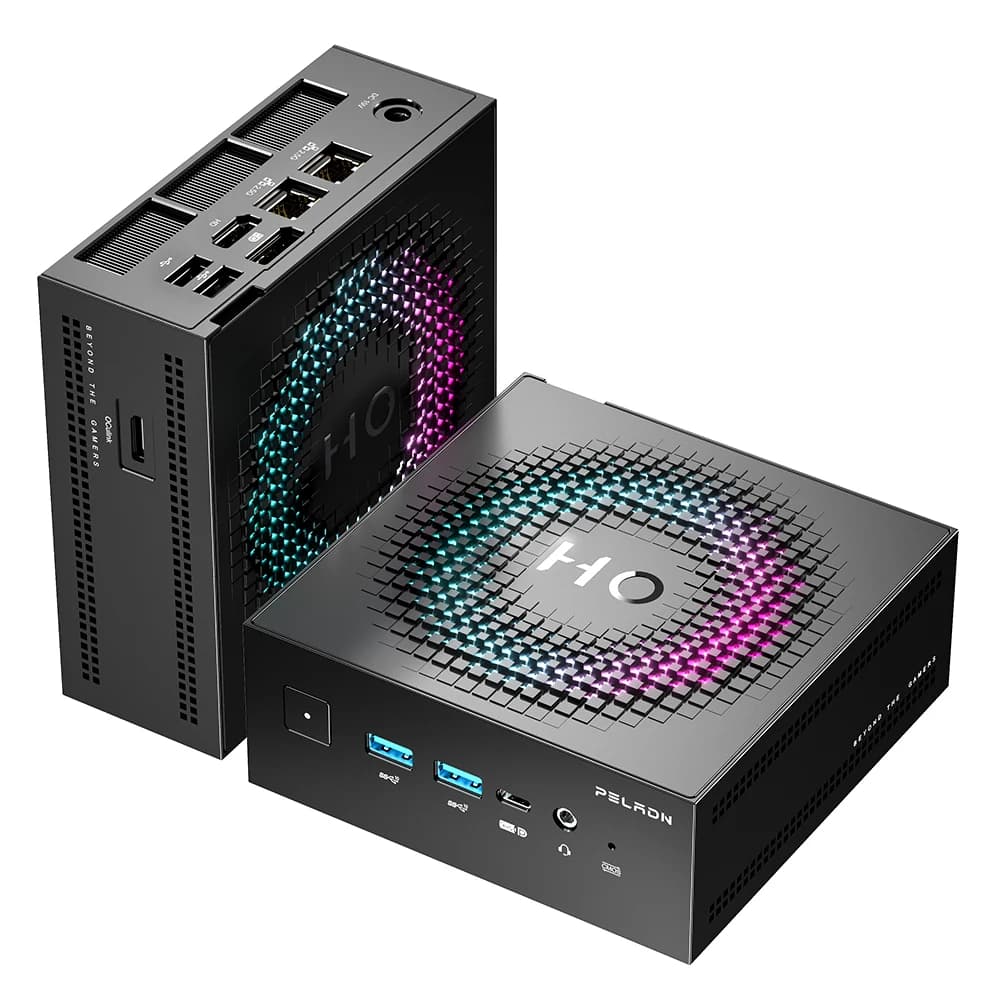

PELADN HO5 HX370 Mini PC powered by AMD Ryzen AI 9 HX 370 processor. Specifications are based on the official PELADN product page.

Model: HO5 HX370
Platform: AMD AMD Ryzen AI 9 HX 370 processor

About the product

PELADN HO5 HX370 is a PELADN mini pc. Technical specifications are structured from the manufacturer's official Product Parameter table. Confirm the exact configuration and availability when submitting an inquiry.

Specifications

General

Brand: PELADN
Product Model: HO5 HX370

Processor

CPU: AMD Ryzen AI 9 HX 370 processor, 12 cores and 24 threads, TSMC 4nm process technology, TDP:54W Base frequency 2GHz, maximum turbo frequency 5.1GHz

AI

AI Engine Performance: Overall TOPS: 80 TOPS, NPU TOPS: 50 TOPS

Graphics

Graphics: AMD RadeonTM 890M graphics card, maximum graphics card frequency 2900MHz
Graphics memory: 2GB(supports modification of video memory capacityy in BIOS)

Memory

Memory+Storage: Onboard LPDDR5X-7500MHz memory, doen not support repleacement or additional install, supports up to 32GB memory customization 2 PCIe 4.0×4 M.2 slots, neither supports SATA protocol M.2 hard drives(Specific memory adn hard drive capacity is subject to actual configuration)

Network

Network: 2*2.5G RJ45 wired network ports, equipped with Wi-Fi 7 wireless network card, supports Bluetooth 5.4

Interfaces

USB: 1*USB4 20Gbps Type-C port(supports using a PD protocol power adapter to power the Mini PC) 2*USB 3.2 Gen2 Type-A ports, 2*USB2.0 ports
OCuLink: Supports 1(side of the body), PCIe 3.0×4 channel, interface bandwidth 32Gbps
Video Output Interface: 1*HD 2.0, supports up to 4K 60Hz Video Output 1*DP 1.2, supports up to 4K 60Hz Video Output
Audio: 1*3.5mm Audio Jack headphone and microphone two-in-one interface(front panel)
Power Interface: 1*DC-in Power Adapter Port(5.5mm×2.5mm)

Power

Power Adapter: Input: 100-240V AC, 50/60Hz, Output: 19V 6.3A

Physical

Shell material/color: Plastic(black)
RGB: Support(Touch the letter O on the top cover to switch ROG color or turn off RGB light)
Weight and size(Manual measurement data for reference only): Net Weight: 1000g Product size: 130*130*55mm

System and operation

OS: Pre-installed Win 11 pro operating system(supports installation of other operating systems such as win 10/Linux)
Work Environment: Temp: -20℃--60℃, RH: 10%--90%
Warehouse Environment: Temp: -20℃--60℃, RH: 10%-90%
Other Features: Support power-on start

Package and logistics

Packing list: 1*mini PC, 1*HD cable, 1*power adapter(19V 6.3A), 1*VESA Bracket, 1*user manual
packing information: Qty/Carton:12(Carton size: 340*340*362mm)

Other

Button: 1*power switch button, 1*Clear CMOS button
